Gamewell FCI ASD-PL2 Addressable Smoke Detector
Gamewell FCI ASD-PL2 Addressable Smoke Detector

Gamewell FCI ASD-PL2 Addressable Smoke Detector

The Gamewell FCI ASD-PL2 Series analog addressable plugin smoke sensors...
Availability: In Stock
$189.50
$219.00
$189.50
Please hurry! Only 9 left in stock
Subtotal: $189.50
Ask An Expert

Free Shipping

Free Fast Shipping On Orders Over $300

Free Returns

Learn More.
Gamewell FCI ASD-PL2 Addressable Smoke Detector

Gamewell FCI ASD-PL2 Addressable Smoke Detector

$219.00 $189.50
Gamewell FCI ASD-PL2 Addressable Smoke Detector
Gamewell FCI ASD-PL2 Addressable Smoke Detector

Gamewell FCI ASD-PL2 Addressable Smoke Detector

$219.00 $189.50
Description
Description
x

The Gamewell FCI ASD-PL2 Series analog addressable plugin smoke sensors with integral communication provide features that surpass conventional sensors. Sensitivity can b e programmed in the control panel software and i s continuously monitored and reported to the panel. Point ID capability allows each sensor’s address to b e set with decade address switches. Providing exact locations for selective maintenance, chamber contamination reaches an unacceptable level.

The Gamewell FCI ASD-PL2 photoelectric sensor’s unique optical sensing chamber. Engineered to sense smoke produced by a wide range of combustion sources. The ASD-PL2 plug-in sensors use a separate base to simplify installation, service, and maintenance. A special tool allows maintenance personnel to plug in and remove detectors without using a ladder

Features / Specifications

Low-profile design with low standby current.

Analog Addressable communication.

Stable communication technique with noise immunity.

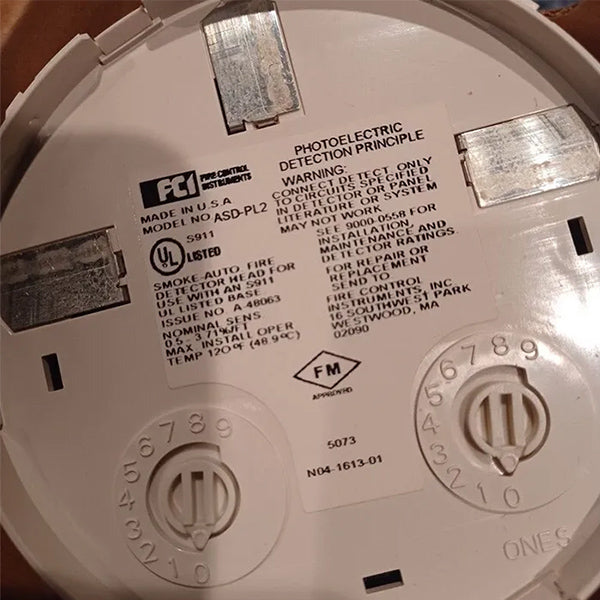

Rotary 01 to 99 address switches.

The dual LED design provides a 360° viewing angle.

Visible red LEDs flash every time the detector i s polled and light steadily on the alarm.

Built-in functional test switch activated by an external magnet.

Operating temperature: 0°C to 38°C (32°F to 100°F)

Relative humidity: 10% – 93% non-condensing.

Voltage range: 15 – 32 volts DC peak.

LED current (max.): 6.5 mA @ 24 VDC.
