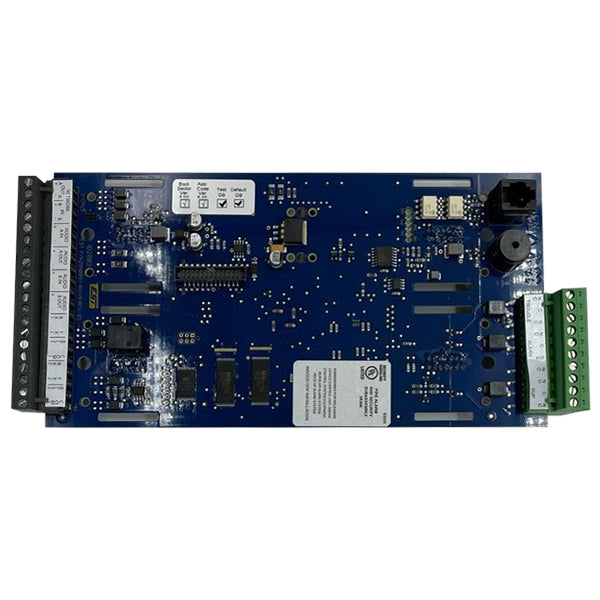

Edwards EST 3-CPU3 Central Processor Unit Module FIRE ALARM

Edwards EST 3-CPU3 Central Processor Unit Module FIRE ALARM

The 3-CPU3 Central Processor Module is the control element for...
Availability: In Stock
$1,150.80
$1,208.00
$1,150.80
Please hurry! Only 3 left in stock
Subtotal: $1,150.80
Ask An Expert

Free Shipping

Free Fast Shipping On Orders Over $300

Free Returns

Learn More.
Edwards EST 3-CPU3 Central Processor Unit Module FIRE ALARM

Edwards EST 3-CPU3 Central Processor Unit Module FIRE ALARM

$1,208.00 $1,150.80
Edwards EST 3-CPU3 Central Processor Unit Module FIRE ALARM

Edwards EST 3-CPU3 Central Processor Unit Module FIRE ALARM

$1,208.00 $1,150.80
Description
Description
x

The 3-CPU3 Central Processor Module is the control element for all
rail modules and control/display modules installed in a control panel.
The 3-CPU3 module performs the following functions:

• Processes all information from modules installed within the cabinet
as well as data received from other panels over the network data
circuit
• Identifies and supervises all modules installed on the rail chassis
and uses an integral watchdog to identify both hardware and
software faults
• Supervises all traffic on the rail bus and implements ground fault
detection
• Date-time stamps events and initiates timed events using an
internal clock with leap year function
• Communicates with other 3-CPUx and 3-ANNCPUx modules over
a Class A or Class B network data circuit (requires an optional
Network Communications card)
• Distributes audio messages across a Class A or Class B network
audio circuit (requires an optional Network Communications card)
In addition, the 3-CPU3 module:
• Provides connections for two optically isolated RS-232 serial ports
(requires an optional 3-RS232 card)
• Provides command and control functions for the eight-channel
digital audio subsystem installed on the rail
• Provides an optically isolated RS-232 port for data uploads,
downloads, and system maintenance
• Provides a Form C common alarm, common trouble, and common
supervisory relay


All field wiring connections to the 3-CPU3 module are made using
plug-in connectors.
The 3-CPU3 module occupies the two leftmost positions on the rail
chassis assembly (logical address 0). The 3-CPU3 ships without
plastic doors and mounting brackets. Before you can install a 3-CPU3
you must attach the mounting brackets supplied with an LCD main
display module or a 3-CPUDR, both ordered separately
